Supercharge Your DJI Inspire 2 Drone: Ultimate Fixes for Battery Problems!

The DJI Inspire 2 Drone experiences occasional battery issues. Sometimes, they simply won’t charge, and failure occurs with error codes that remain somewhat ambiguous. So here are some way you can try to Fix DJI Inspire 2 Drone TB50 Battery.

1. Firmware Issue

If your battery shows two solid white LEDs in the middle, and upon plugging it into the charger, it flashes red, then it is likely a firmware problem. Some people encounter this issue when they purchase a new TB50 battery. This is because the firmware version of the new battery does not match the firmware version of the old battery.

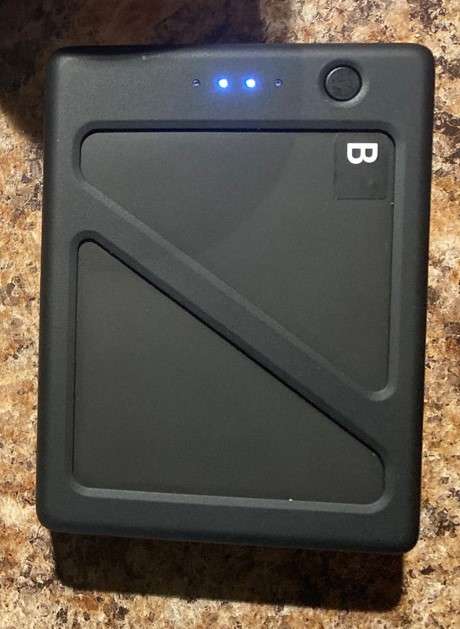

A image of DJI Inspire 2 Drone Battery

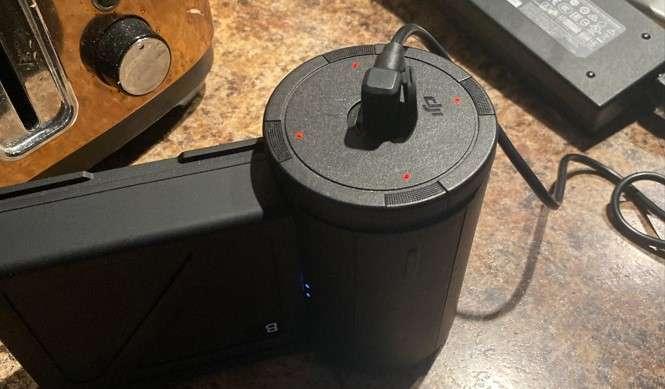

A image of DJI Inspire 2 Battery Charging

Your battery 1 and battery 2 Firmware versions should be the same. So you must update it. You Should be update with the latest firmware.

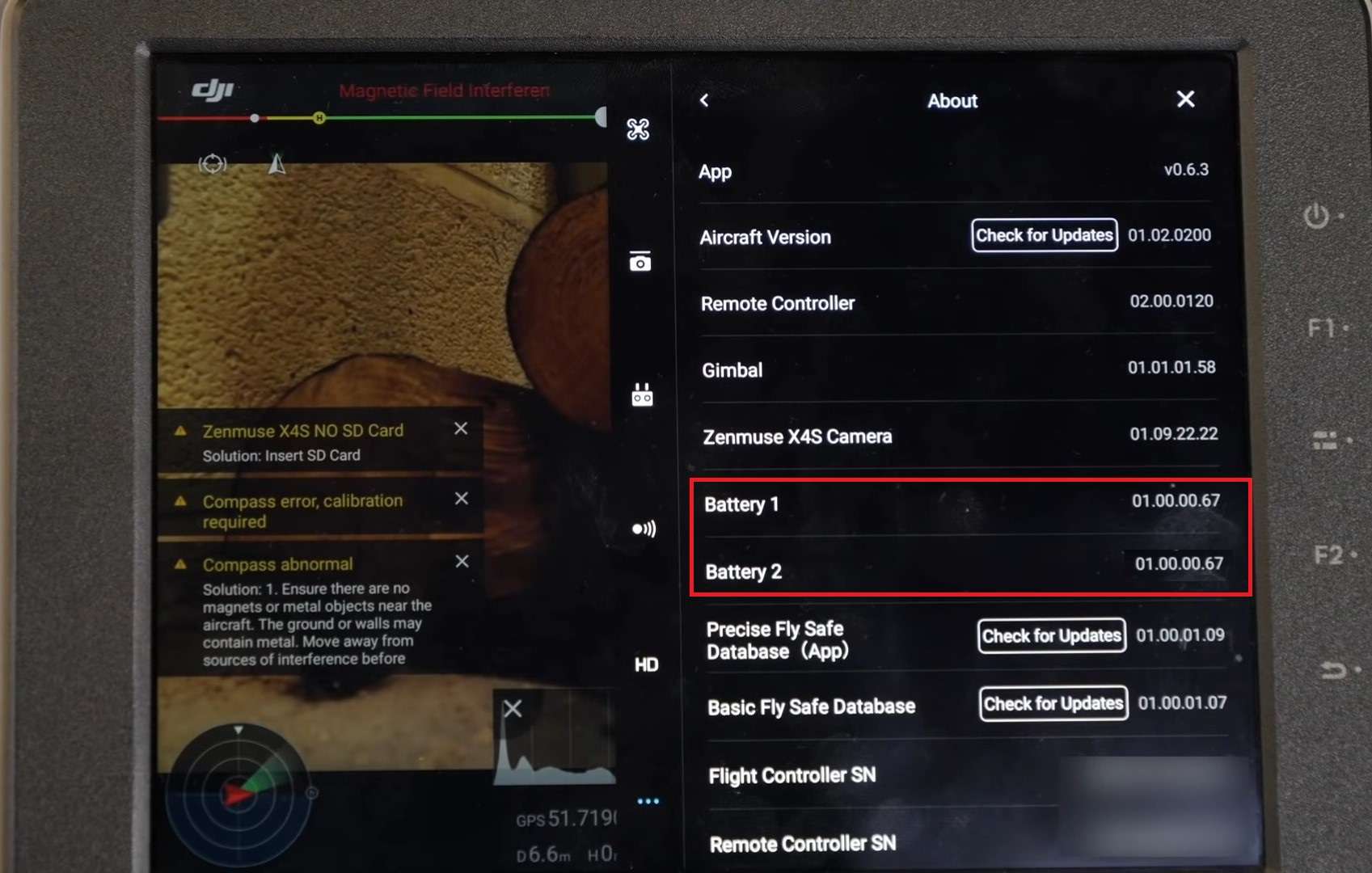

A image of DJI Inspire 2 Battery Settings

Here the Overview of New DJI Inspire 2 Drone Firmware Released (12/9/2021)

Date: December 9, 2021

Aircraft Firmware: V01.02.0600

Remote Controller Firmware:

  • Ordinary Remote Controller: v01.01.0080
  • Cendence Remote Controller: v02.00.0190

DJI GO 4 App:

  • iOS: v4.3.42 or above
  • Android: v4.3.46 or above

What’s New?

  • This update brings improvements to the overall flight experience by addressing gimbal roll drift. The optimization aims to enhance stability and control during flight, particularly in the performance of the gimbal.

Note:

***For users of the DJI Inspire 2 Drone with Zenmuse X4S/X5S/X7 cameras, it is strongly recommended to update both the aircraft and the camera simultaneously. This ensures compatibility and maximizes the benefits of the firmware enhancements.

***To prevent potential control errors or abnormalities in camera and gimbal functionality, it is essential to update both the primary and secondary remote controllers to the latest firmware version.

2. Battery Management

It is important to monitor voltages in the context of flying DJI Inspire 2 drones. It can lead to a Battery Problem. Percentage values and time remaining indicators that may not be entirely accurate, urging users to rely on voltage readings for a more precise assessment of battery status and recommending You to check voltages on the home screen, particularly before takeoff. Here some provide guidelines for ensuring you can use the right battery charging.

Display and Interpretation of Data:

  • Check the display showing percentages and flight time remaining.
  • Points out that percentage values and time remaining are not always guaranteed to be accurate, drawing a parallel to experiences with laptops.
  • Suggesting that voltages should be checked for accuracy.

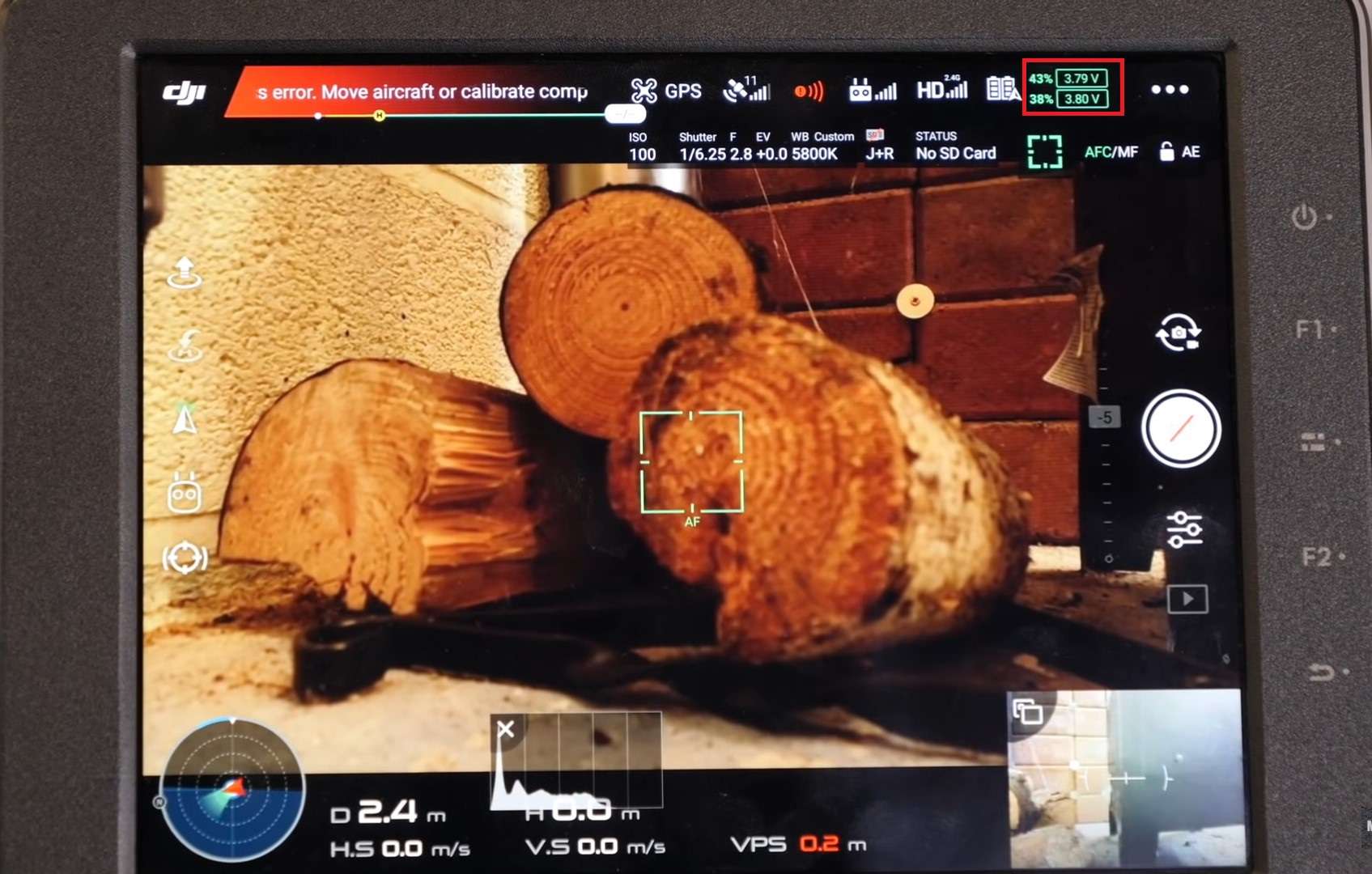

A image of DJI Inspire 2 Battery Voltage

Voltage Checking on the Home Screen:

  • Indicates that voltages are displayed next to each battery percentage.
  • Gives an example where the top battery at 44 percent has a voltage of 3.8, and the next battery at 39 percent has a voltage of 3.81.
  • that the lowest average voltage is crucial for in-flight monitoring.

Rules for Battery Charging and Takeoff:

  • Stresses that before takeoff, batteries should always be fully charged, ideally at least 4.25 volts per cell.
  • Recommends checking the battery screen to ensure that all cells are at least 4.25 volts.

Note:

That on the TV 50, the voltage range might be between 4.25 and 4.35 volts.

A image of DJI Inspire 2 Battery Level

Battery Balance and Variance:

  • Mentions that there will always be slight variances in battery voltages but recommends checking for consistency.
  • Suggesting that a variance of 0.1 volts per cell is a critical threshold, beyond which further investigation is needed.
  • Advising for cycling the battery if there’s an issue and not using it until checked.

3. Battery Internal Problem

If Your Battery not charging then it could be an internal problem, if you warranty you can contact DJI support for replacement or repair. You can go the hard way to check the internal components, if you don’t have a warranty and you have mechanical technology you can go for it but I could recommend that you buy DJI Inspire 2 Drone TB50 Battery Form official store.
