Large-scale farming demands precision, speed, and reliability, and the DJI Agras T100 delivers all three. Built for serious commercial agriculture, this flagship drone combines a 100-liter spray tank, coaxial dual-rotor power, and an industry-leading Safety System 3.0 into one modular platform that handles spraying, spreading, and payload lifting with equal ease.
If you are evaluating the most capable agricultural drone DJI has ever built, here is a complete breakdown of every specification that makes the Agras T100 stand apart from the competition.
Table of Contents
Advanced Payload Capacities
The Agras T100 excels in its ability to perform multiple agricultural tasks, including spraying, spreading, and payload lifting.
Spraying
The T100’s spraying system is built for large-scale operations, delivering one of the highest liquid capacities and fastest flow rates in any agricultural drone available today.
- Liquid Capacity: 100 liters, ensuring fewer refills during operations.
- Spray Width: Adjustable between 5 and 11 meters for efficient field coverage.
- Flow Rate: Delivers up to 40 liters per minute.
- Droplet Size: Customizable from 50 to 500 μm, catering to various crop types and environmental needs.
- Pump System: A magnetic-drive impeller pump ensures consistent liquid distribution.
Spreading
The spreading system on the T100 is a major step up from previous Agras models, with a 270% increase in flow rate and a tank size that handles fertilizers and seeds at serious commercial scale.
- Hopper Capacity: 150 liters, ideal for fertilizers and seeds.
- Dispensing Rate: Handles up to 400 kg per minute.
- Granule Compatibility: Supports sizes from 0.5 to 10 mm.
- Broadcasting Width: Adjustable from 3 to 10 meters.
- Special Features: Interchangeable screws accommodate various granule types.
Payload Lifting
- Maximum Capacity: 100 kg (for the standard lifting system), 80 kg (for the dual-battery lifting system).
- Equipped with: A 10-meter lifting rope for safe and effective transport.
Robust Design and Dimensions
- Maximum Takeoff Weight: 175 kg (for spraying with 2 nozzles), 177 kg (with 4 nozzles), 175 kg (for spreading), 165 kg (with lifting system), 170 kg (with dual-battery lifting system).
- Diagonal Wheelbase: 2330 mm for optimal balance.
- Propellers: 62-inch carbon fiber blades provide superior thrust and durability.
- Tank Material: Lightweight HDPE for durability and efficiency.
- Modularity: Quick-swap payload systems allow seamless transitions between tasks.
- Coaxial Dual-Rotor Design: Enhances safety and redundancy.
Navigation and Control
Precision is at the core of the T100’s navigation, combining RTK positioning with an advanced radar system and LiDAR terrain mapping for reliable operation across complex field environments.
- RTK Positioning: Achieves centimeter-level accuracy for flawless navigation.
- Obstacle Avoidance:
- Active phased-array radar system with a detection range of 60 meters.
- Full 360° horizontal and 180° vertical field of view.
- Controller: The DJI RC Plus 2 features a 7-inch high-resolution touchscreen for intuitive operation.
- LiDAR Scanning: Facilitates terrain mapping and precision flight path generation.
Power and Performance
The Agras T100 ensures efficiency and reliability during extensive field operations.
- Battery:
- DB2160 intelligent batteries with a massive 41,000 mAh capacity.
- Recharge time: Only 8–9 minutes using the D14000iE variable-frequency charging station.
- Motors: Low KV (60 rpm/V) motors optimize power usage.
- Flight Time: Designed for prolonged operations without interruptions.
Industry-Leading Safety Features
The Agras T100 is equipped with one of the most advanced safety systems in any agricultural drone, combining multi-directional radar, laser detection, and a five-eye vision system to protect both the drone and the operator.
- Multi-Directional Radar: Covers front, rear, and downward directions to avoid obstacles up to 60 meters away.
- Intelligent Return-to-Home (RTH): Utilizes RTK-level precision for obstacle-free returns.
- Environmental Resilience: Functions effectively in temperatures ranging from 0°C to 40°C.
- Durable Build: Carbon fiber composite materials offer strength and wear resistance.
- Advanced Safety System:
- Laser Radar: Captures 300,000 spatial point clouds per second for precise obstacle detection, including cables and power lines.
- Five-eye fisheye vision system enhances situational awareness.
Specialized Systems for Agricultural Tasks
Spraying Capabilities
- Dual spray heads, expandable to four for larger coverage.
- Uniform droplet distribution ensures even and efficient crop treatment.
- Customizable operations adapt to various field sizes and crop needs.
Spreading System
- Features a centrifugal throw plate for consistent granule distribution.
- Anti-clogging mechanisms ensure uninterrupted performance.
High-Efficiency Sowing System
- Spiral auger design doubles the flow rate for faster sowing.
- Capable of distributing two bags of fertilizer simultaneously.
Applications
The T100 is versatile enough to handle multiple roles on a farm, going well beyond basic spraying to cover fertilizing, seed distribution, cargo transport, and field monitoring.

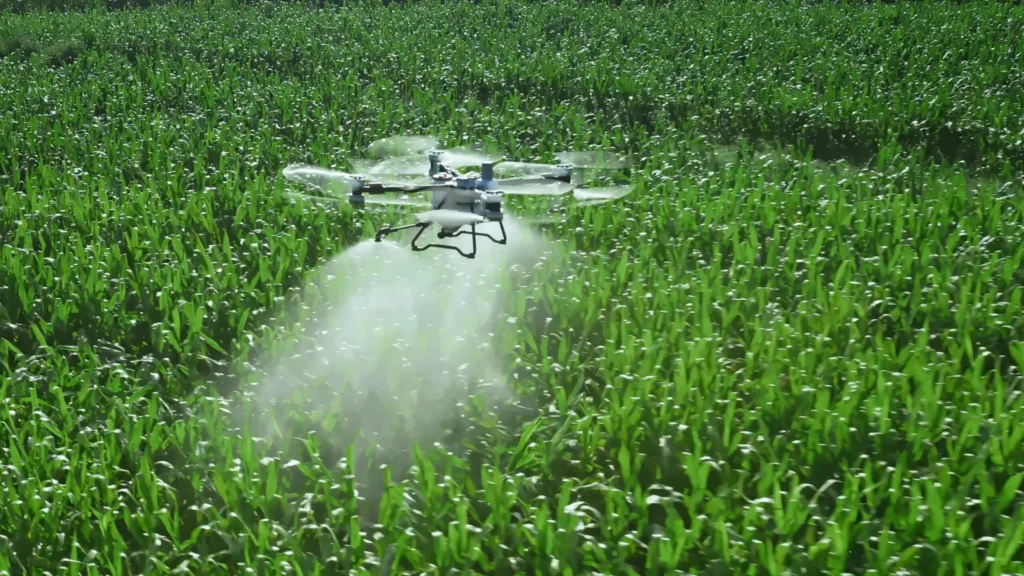

- Crop Spraying: Precise application of pesticides, herbicides, and fertilizers.
- Fertilizer and Seed Broadcasting: Efficiently covers large areas with minimal effort.
- Payload Transport: Delivers tools and supplies to remote or challenging terrains.
- Environmental Monitoring: Captures crucial data on crop health, soil conditions, and water usage.
Competitive Edge
- Payload Capacity: Industry-leading 75L spraying, 150L spreading, and 85 kg lifting capabilities.
- Fast Recharge: Takes just 8–9 minutes compared to competitors’ 30–60 minutes.
- Navigation: RTK positioning paired with comprehensive radar coverage.
- Modularity: Designed to perform spraying, spreading, and lifting with ease.
The DJI Agras T100 is an unparalleled solution for modern agriculture. With its precision, versatility, and advanced technology, it empowers farmers to boost efficiency and productivity while maintaining sustainability. Whether you need to spray, sow, or transport, the Agras T100 is the ultimate agricultural companion.
DJI Agras T100 vs T70P vs T50
| DJI Agras T100 | DJI Agras T70P | DJI Agras T50 | |
| Spray tank | 100 L | 70 L | 40 L |
| Flow rate (standard) | 30 L/min | 30 L/min | 16 L/min |
| Flow rate (4 nozzles) | 40 L/min | 40 L/min | 24 L/min |
| Spray width | 5–11 m | 4–11 m | 4–11 m |
| Droplet size | 50–500 μm | 50–500 μm | 50–500 μm |
| Spreading tank | 150 L | 100 L | 50 kg |
| Spreading flow rate | 400 kg/min | — | 108 kg/min |
| Spreading width | 3–10 m | 3–10 m | 3–8 m |
| Max lift capacity | 100 kg | 65 kg | — |
| Lifting rope | 10 m | 10 m | — |
| Max operation speed | 20 m/s | 20 m/s | 10 m/s |
| Battery capacity | 41,000 mAh | 41,000 mAh | 30,000 mAh |
| Recharge time | 8–9 min | 7–9 min | 8–10 min |
| Positioning | RTK | RTK | RTK (D-RTK) |
| Obstacle detection range | 60 m (LiDAR) | 60 m (radar) | 50 m (radar) |
| Vision system | Penta-Vision (5-eye) | Tri-Vision (3-eye) | Binocular |
| Safety system | 3.0 + LiDAR | 3.0 | 2.0 |
| Controller | DJI RC Plus 2 | TKPL 2 | RC Plus |
| Best for | Large-scale commercial farms | Medium-sized farms | Mid-to-large farms (globally available) |
