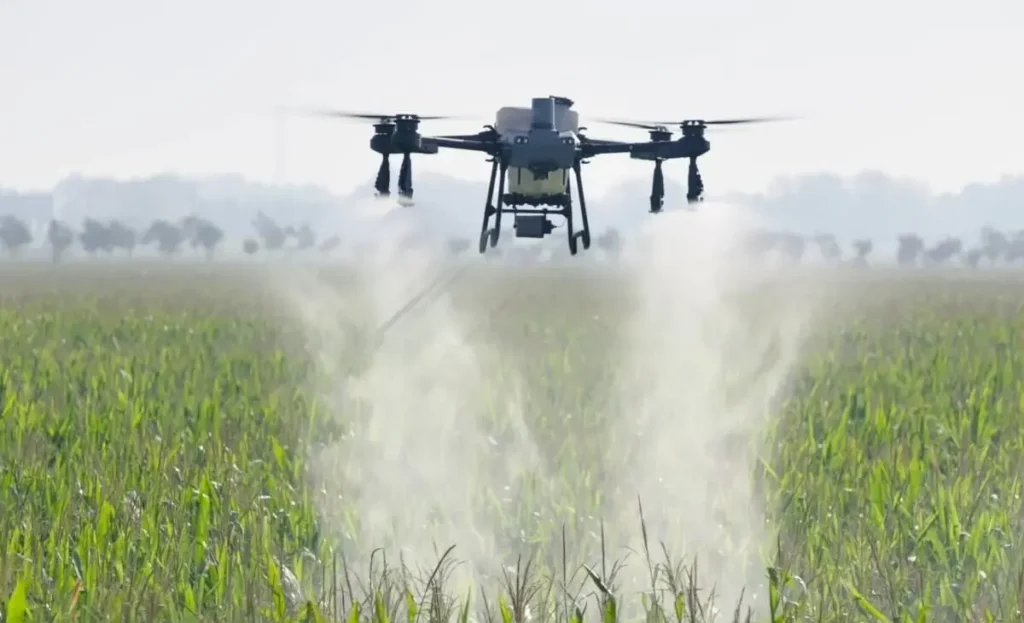

The DJI Agras T25 is an advanced agricultural drone built to elevate the efficiency and precision of large-scale farming operations. Equipped with state-of-the-art technology, this drone offers a range of features designed to streamline agricultural tasks and maximize productivity.

Whether for crop spraying, spreading, or payload lifting, the T25 ensures a reliable and precise operation to meet the needs of modern farmers.

Package Options and Pricing

Standard Package: 10,999.
Flagship Package: Price upon request.

Buy Now: Alibaba.com

Advanced Payload Capacities

The DJI Agras T25 excels in a variety of agricultural tasks such as crop spraying, seed/fertilizer spreading, and payload transport, thanks to its advanced payload capacities.

Spraying

Spray Tank Capacity: 20 L, optimized for smaller to mid-sized fields.
Spray Width: Adjustable between 4 to 7 meters for flexible field coverage.
Flow Rate: Up to 16 L/min (with 2 sprinklers active).
Droplet Size: Adjustable from 50 to 500 μm for customized spray efficiency.
Pump System: Dual impeller pumps (magnetic drive) ensure reliable spray distribution.

Spreading

Spreading Tank Volume: 35 L for fertilizers and seeds.
Dispensing Rate: Capable of spreading materials effectively at up to 25 kg per load.
Granule Compatibility: Supports granules ranging from 0.5 to 5 mm.
Effective Spreading Width: Varies between 5-8 meters depending on material type, spinner speed, and altitude.

Payload Lifting

Maximum Payload Capacity: 20 kg for efficient payload transport.
Lifting Height: Standard 1-50 meters, with advanced terrain-follow capabilities for optimized delivery in varying conditions.

Robust Design and Dimensions

The DJI Agras T25 is designed with durability and stability in mind, making it suitable for extensive use across different types of agricultural terrain.

Diagonal Wheelbase: 1925mm providing enhanced stability for operations.
Maximum Takeoff Weight: 52 kg (for spraying) to 58 kg (for spreading).
Diagonal Wheelbase: 1925 mm, providing enhanced stability for operations.

Dimensions

Unfolded: 2585 mm × 2675 mm × 780 mm
Folded: 1050 mm × 690 mm × 820 mm
Propellers: 50-inch nylon carbon fiber propellers for high thrust and durability.

Navigation and Control

The DJI Agras T25 incorporates cutting-edge navigation and control features that ensure precision in every operation.

RTK Positioning: Achieves centimeter-level accuracy for accurate flight paths and spraying/spreading.
Obstacle Avoidance: Equipped with multidirectional radar and a binocular vision system for enhanced obstacle detection and avoidance, with a sensing range of up to 50 meters.
Controller: The RM700B remote controller features a 7-inch LCD touchscreen, offering clear visibility and seamless control during operations.
RTK Positioning: Achieves centimeter-level accuracy for precise navigation.

Obstacle Avoidance

Front and rear millimeter wave radar systems.
Tri-eye Visionary Intelligence with a 360° horizontal field of view.
Horizontal detection range: Up to 60 m.
Vertical detection range: ±45°.
Controller: The TKPL 2 remote controller with a 7-inch high-resolution LCD touchscreen, providing an intuitive user interface for seamless operation.

Power and Performance

The DJI Agras T25 delivers exceptional power, offering long-lasting performance in the field with minimal downtime.

Battery: DB800 Intelligent Flight Battery (15500 mAh, 52.22 V), providing a high-performance energy source for extended flights.
Recharge Time: 9-12 minutes for fast recharging, allowing for minimal breaks between operations.
Motors: 4600 W per rotor, ensuring efficient power consumption and flight performance.
Wind Resistance: With a maximum wind resistance of 6 m/s, the T25 operates effectively in various weather conditions.

Industry-Leading Safety Features

The DJI Agras T25 integrates advanced safety systems, ensuring secure operation in a range of agricultural settings.

Multi-Directional Radar: Provides 360° obstacle sensing up to 50 meters.
Terrain Follow: Automatically adjusts flight altitude to maintain a consistent distance from the ground, enhancing field coverage even in uneven terrain.
Return-to-Home (RTH): The intelligent RTH system ensures the drone can safely return to its starting point using RTK-level precision.
Environmental Resilience: Designed to operate in temperatures ranging from -20°C to 50°C, making it suitable for various climates.

Specialized Systems for Agricultural Tasks

Spraying System

Dual Atomizing System: Features two high-efficiency sprinklers (LX8060SZ) with a droplet size range of 50-500 μm for optimal crop coverage.
Pump System: Dual impeller pumps offer a maximum flow rate of 24 L/min (with 4 sprinklers).

Spreading System

Granule Compatibility: The spreading system can handle materials with diameters between 0.5-5 mm.
Customizable Spread Width: The spread width can be adjusted for optimal coverage of 5-8 meters, depending on material type and environmental conditions.

Lifting System

Payload Transport: The T25 can lift up to 20 kg, making it ideal for transporting materials, seeds, or tools across fields.

Applications

The DJI Agras T25 is a versatile drone, capable of handling various agricultural tasks:

Crop Spraying: Efficient application of fertilizers, pesticides, and herbicides across large fields.
Fertilizer and Seed Broadcasting: Accurate spreading of fertilizers and seeds with customizable coverage.
Payload Transport: Ideal for carrying materials to hard-to-reach areas within the field.
Environmental Monitoring: Capable of capturing valuable data for crop health analysis and field conditions.

Competitive Edge

The DJI Agras T25 stands out in the agricultural drone market with its

Advanced Payload Capacities: Industry-leading spray, spread, and lift performance.
Fast Recharge Time: Rechargeable in just 9-12 minutes, reducing downtime.
RTK Positioning: Ensures centimeter-level flight accuracy.
Modular Design: Quick switching between spraying, spreading, and payload transport modes for maximum versatility.

The DJI Agras T25 is a powerful, high-performance agricultural drone that guarantees precision, safety, and efficiency. Whether it’s spraying, spreading, or payload lifting, the T25 meets the demands of modern agriculture, ensuring better yields and increased productivity.

Article Summary

The DJI Agras T25 is an advanced agricultural drone designed to improve efficiency in farming operations. It offers versatile features for crop spraying, fertilizer and seed spreading, and payload transport. The drone has a 20L spray tank, 35L spreading capacity, and can lift up to 20 kg. It boasts cutting-edge technology, including RTK positioning for centimeter-level accuracy, multi-directional radar for obstacle avoidance, and fast 9-12 minute recharge time.

The T25 is built for durability, with a robust design, and is suitable for various environmental conditions. With its modular design, it allows for quick switching between tasks, ensuring optimal productivity for modern farming needs.
